ORIGINAL PRECISION

IS PROUD TO BRING YOU THE TOUGHEST

PREMIUM QUALITY J FRAME 38/357 MOON CLIPS


MY FOCUS ON THE CCW HD MOON CLIP

WAS TO RELIABLY GET YOUR CYLINDER EMPTY

FAST AS POSSIBLE SO YOU CAN RELOAD

BY WHATEVER MEANS YOU LIKE


THERE IS NO ROUGHER HIGH STRESS SITUATION

THAN NEEDING TO RELOAD WHILE

TAKING INCOMING FIRE


THIS IS WHERE THE CCW HD MOON CLIP SHINES

GUARENTEED POSTIVE EXTRACTION

OF ALL SPENT CASES AT ONCE.

NO PICKING SINGLES OUT OF THE CYLINDER

HIT THE EJECTOR ROD

WHOLE UNIT COMES OUT

RELOAD

BACK TO THE FIGHT


WE HAVE ALL AT ONE TIME OR ANOTHER

HIT THE EJECTOR ROD AND HAD SOME CASES

STAY PARTIALLY IN THE CYLINDER

ITS A KNOWN THING WITH SNUB NOSE REVOLVERS


OR GOD FORBID THE RARE BUT HAPPENS

CASE HEAD SLIPS UNDER EXTRACTOR STAR

THATS A SERIOUS PROBLEM IN CCW SITUATIONS


NOW THERE IS THE ULTIMATE

SOLUTION TO THESE PROBLEMS.

LOAD YOUR CYLINDER WITH AMMO

RETAINED BY CCW HD MOON CLIPS

BEFORE YOU HOLSTER AND LEAVE

THE HOUSE.


These MOON CLIPS are my own engineering. Made from heat treated stainless.


THESE ARE A MASSIVELY beefed UP VERSION

vs ANY S&W J frame 38/357 clips OUT THERE.

Critical changes worked well. These are the only J 38/357 moon clips that you can use with MOST any ammo cases you want.

No more “what ammo what MOON clip”.


ENGINEERED THIS WAY SO CAN USE THE SAME

ONE TO EJECT AND UNLOAD SPENT CASES

FOR ANY BRAND AMMO YOU HAVE ON HAND

OR LIKE IN YOUR CARRY GUN

THESE HAVE BEEN tested with

the smallest cases, mid sized cases, and

largest cases I have out of

27 headstamps total

about 300 spent cases on hand.


MANUFACTURERS TESTED
HORNADY - BUFFALO BORE
FEDERAL - REMINGTON - WINCHESTER - FIOCHI
STARLINE - CBC MAGTECH - PPU - WRA - RP
FC - WESTERN - PMC - WW - WCC.


The CCW HD MOON CLIPS

work amazingly well

Clipped in the smallest. No problem. Mid size. No problem. Largest. No problem.

THEN BACK TO THE SMALLEST. NO PROBLEM.


All LOADED AND UNLOADED with my fingers.



None wanted to fall out

of the CCW HD MOON clipS


This is due to the painstaking time taken in engineering, material selection, as well as accuracy and consistency of the wire EDM.

The COMBINATION OF THESE things

let me create you a new

J FRAME MOON clip that will not fail


These do not collapse outboard and have the petals splay apart in a bent position. Which destroys that clip and makes it useless for any repeated uses as it will no longer hold the cases.

To ensure you receive genuine Original Precision CCW HD moon clips I added a makers mark to my moon clips.


This is a wired in shape done on the EDM. As you cannot laser a heat treated stainless moon clip without damaging the integrity of the heat treat properties.

I began at the basics of J moon clips and went back to the original 940 9mm version AS A GUIDE.  THE 940 9MM MOON CLIP WAS THE VERY FIRST J FRAME MOON CLIP.  Ranch Products PRODUCED THAT CLIP USING A DIE on the punch press for Smith IN THE 90S.


Then WITH THAT BASIS I SAT DOWN AND

created THIS HEAVY DUTY brand new

fully functional CCW HD moon clip

of my own geometries.



CCW HD MOON CLIPS 38/357

HEAT TREATED .025 STAINLESS

QTY 3PC - $27

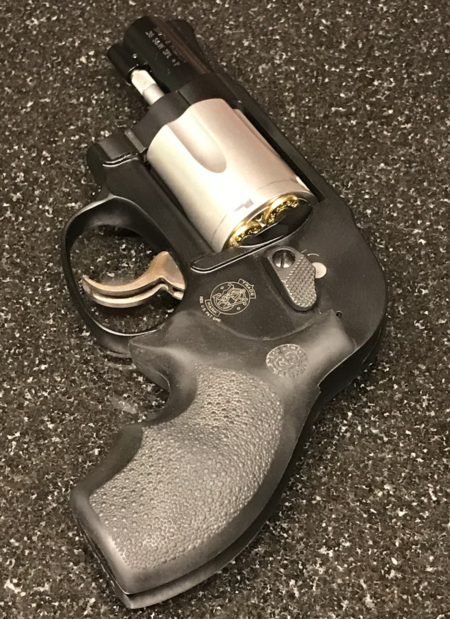

ORIGINAL PRECISION CCW HD moon clips will drop right over A stock J FRAME ratchet. as long as your gun was properly machineD for moon clips they will work in your J FRAME 38/357.


If your J FRAME isn’t machined it will need to be machined by Original PrecisioN.




CLICK PICTURES FOR CCW HD CYLINDER CONVERSIONS











CCW HD MOON CLIP FINGER LOADING AND UNLOADING PROCESS:


NO TOOLS REQUIRED

DONE WITHOUT BENDING THE MOON CLIP


HOLD CCW HD MOON CLIP FLAT IN CENTER

BETWEEN THUMB AND FORE FINGER TIP.

GRASP ROUND AROUND OUTSIDE DIAMETER

BETWEEN OTHER THUMB AND FORE FINGER


PLACE CASE RECESS UNDER RIM AGAINST

CCW HD MOON CLIP OPENING.

APPLY GENTLE PRESSURE WITH THUMB ON

CASE TOWARD CENTER OF MOON CLIP AND

GENTLY ROTATE CASE TOWARD YOU.

CASE WILL SNAP RIGHT IN.


ONCE I GET THE FIRST CASE IN THEN

I CHANGE MY HOLD AND GENTLY

GRASP MOON CLIP BY THE PERIMETER.

I ROTATE THE MOON CLIP TOWARDS ME

TO REPOSITION FOR EACH CASE INSERTED.

I ROTATE THE ROUND TOWARD ME AS

I CLIP EACH FRESH ROUND IN.

THIS WAY YOU HAVE THE NEXT EMPTY

OPENING AWAY FROM YOU AS YOU CLIP

IN EACH ROUND INSERTED.


SOME OF THE LARGER CASES TO GET THE

LAST ROUND IN I WILL GRASP THE ROUND

BY THE BASE AND TIP AS IN THUMB

OVER PRIMER AND BULLET NOSE ON

TIP OF INDEX FINGER.

THEN USE THE SAME GENTLE ROTATION

AND PRESSURE AS WAS DONE WITH THE

PREVIOUS ROUNDS.


TO UNLOAD HOLD MOON CLIP GENTLY

AROUND PERIMETER.

GRASP EMPTY CASE WITH THUMB OVER

PRIMER AND CASE MOUTH ON INDEX FINGER TIP.

HOLD MOON CLIP SO IT DOESNT MOVE.


GENTLY ROTATE CASE COUNTER CLOCKWISE

WHILE APPLYING GENTLE PRESSURE

OUTBOARD TO REMOVE CASE FROM CLIP.


ONCE I GET THE FIRST TWO CASES OUT

I USUALLY JUST GRASP THE MOON CLIP

FLAT BY ITS CENTER AND FINISH REMOVING

THE REST OF THE CASES.


BUT YOU DO NOT HAVE TO CHANGE HOW

YOU HOLD THE MOON CLIP.

SOMETIMES I JUST KEEP AHOLD OF THE

PERIMETER AND FINISH REMOVING THE

EMPTY CASES.



EVERYONES MANUAL DEXTERITY IS DIFFERENT.

YOU MAY FIND THAT FOR LOADING AND

UNLOADING THAT ROTATING IN THE OPPOSITE

DIRECTION THAT I DO WORKS BETTER FOR YOU.

I CAN DO IT EITHER DIRECTION BUT THE

WAY I OUTLINED ABOVE WORKS BEST FOR ME.

USE THE ABOVE AS A BASIS TO FIND WHAT

WORKS BEST FOR YOU.


WHEN I GET TIME I WILL MAKE A VIDEO FOR THIS.


IF YOU HAVE ANY QUESTIONS OR ISSUES

LOADING OR UNLOADING YOUR MOON CLIPS

BY HAND GIVE ME A CALL 480-305-3236

I CAN TALK YOU THRU IT IN A MINUTE OR TWO.




CCW HD MOON CLIP FITMENT NOTE:


DUE TO SLIGHT VARIATIONS

BEYOND MY CONTROL

IN SOME MANUFACTURERS CASES YOU

MIGHT HIT A CERTAIN LOT THAT IS
OVERLY TIGHT OR DOESNT WANT TO CLIP IN.


SAAMI DOES NOT HAVE A SPEC FOR THE
RECESS UNDER THE RIM ON 38/357
SO EACH MANUFACTURER DOES WHATEVER
THEY LIKE IN THAT AREA.

FOR EXAMPLE ONE LOT OF
FEDERAL HAD A THINNER RECESS

UNDER THE RIM. THIS CAUSED THAT

LOT TO BE TOO TIGHT. THEY DID NOT WANT TO

CLIP IN.  BUT OTHER FEDERAL HAD A WIDER

RECESS UNDER THE RIM.  THOSE WORK FINE.

CLIPPED IN NICELY AND CASES HELD NICE

AND STRAIGHT.



THIS INCONSISTENCY IN CASES FROM LOT TO LOT OR MANUFACTURER TO MANUFACTURER

VARIES.  SOME HOLD VERY CONSISTENT

DIMENSIONS ON THEIR CASES SOME DO NOT.


CCI SNAKE SHOT HAS NOT BEEN TESTED
THERE IS NO RECESS UNDER THE CASE
RIM FOR THE CCW HD MOON CLIP TO

CLIP INTO AND HOLD ONTO THE CASE BY.

IF YOU GIVE IT A TRY LET ME KNOW

HOW IT WORKS.  GIVE ME A CALL WHILE

YOU HAVE A FEW MINUETES WITH CCI SNAKE

SHOT AND CCW HD MOON CLIPS IN HAND.

I MAY BE ABLE TO COME UP WITH A SOLUTION.







LOCK DELETE for S&W Revolvers


CCW HDtm

SPEED &

FUNCTION

SERVICES

FASTER RELOADS

SMOOTHER FUNCTION

ORIGINAL PRECISION

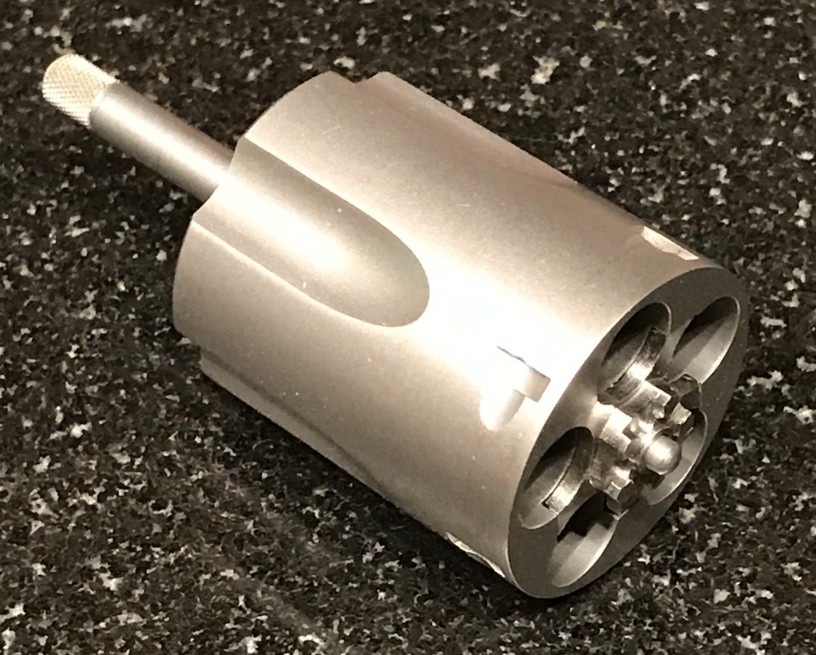

CCW HDTM CYLINDER SPEED & FUNCTION SERVICES FOR S&W J FRAME REVOLVERS


EVER SINCE I RELEASED THE

CCW HDTM CYLINDER CONVERSIONS AND

CCW HDTM MOON CLIPS THERE HAVE BEEN

A LOT OF CALLS ASKING IF I WILL

SMOOTH OUT THE FUNCTION ON

THIER CYLINDER WITHOUT

MACHINING IT FOR MOON CLIPS.

THAT SERVICE IS NOW AVAILIBLE.

ALL REVOLVER CYLINDERS BENEFIT FROM HAVING THE CCW HD
TM SPEED & FUNCTION SERVICE DONE

THE ONES THAT BENEFIT MOST FROM THIS ARE THE SNUB NOSE CARRY REVOLVERS.  THESE ARE NOTORIOUS FOR HAVING HITCHES IN THE ACTION WHEN YOU HIT THE EJECTOR ROD DUE TO EVERYTHING BEING SO SHORT ON THE SNUBS.

THE SPEED & FUNCTION SERVICE MAKES YOUR RELOADS FASTER AND YOUR CYLINDER FUNCTION AS SMOOTH AS POSSIBLE.

YOUR CYLINDER IS THOUROUGHLY GONE THRU TO MAKE ITS ACTION EXTREMELY SMOOTH AND FAST.

THERE ARE 84 INDIVIDUAL POINTS THAT ARE ADDRESSED ON EACH CYLINDER ASSEMBLY DURING THE PROCESS.

I DO NOT NEED YOUR GUN, ONLY SHIP THE CYLINDER ASSEMBLY














CLICK HERE FOR ELECTRONIC WORK ORDER

OPENS IN NEW WINDOW

OR EMAIL PARTS@ORIGINALPRECISION.COM



CCW HDTM CYLINDER SPEED & FUNCTION SERVICE

5  SHOT - 115


CCW HDTM CHAMFER CHARGE HOLES

5 SHOT - 75






ORIGINAL PRECISION

IS PROUD TO BRING YOU THE TOUGHEST

PREMIUM QUALITY J FRAME 38/357 MOON CLIPS


MY FOCUS ON THE CCW HDTM MOON CLIP

WAS TO RELIABLY GET YOUR CYLINDER EMPTY

FAST AS POSSIBLE SO YOU CAN RELOAD

BY WHATEVER MEANS YOU LIKE


THERE IS NO ROUGHER HIGH STRESS SITUATION

THAN NEEDING TO RELOAD WHILE

TAKING INCOMING FIRE


THIS IS WHERE THE CCW HDTM MOON CLIP SHINES

GUARANTEED POSITIVE EXTRACTION

OF ALL SPENT CASES AT ONCE.

NO PICKING SINGLES OUT OF THE CYLINDER

HIT THE EJECTOR ROD

WHOLE UNIT COMES OUT

RELOAD

BACK TO THE FIGHT


WE HAVE ALL AT ONE TIME OR ANOTHER

HIT THE EJECTOR ROD AND HAD SOME CASES

STAY PARTIALLY IN THE CYLINDER

ITS A KNOWN THING WITH SNUB NOSE REVOLVERS


OR GOD FORBID THE RARE BUT HAPPENS

CASE HEAD SLIPS UNDER EXTRACTOR STAR

THATS A SERIOUS PROBLEM IN CCW SITUATIONS


NOW THERE IS THE ULTIMATE

SOLUTION TO THESE PROBLEMS.

LOAD YOUR CYLINDER WITH AMMO

RETAINED BY CCW HDTM MOON CLIPS

BEFORE YOU HOLSTER AND LEAVE

THE HOUSE.


THESE MOON CLIPS ARE MY OWN ENGINEEREING. MADE FROM HEAT TREATED STAINLESS.


THESE ARE A MASSIVELY BEEFED UP VERSION

 VS ANY S&W J FRAME 38/357 CLIPS EVER MADE.

CRITICAL CHANGES WORKED WELL. THESE ARE THE ONLY J 38/357 MOON CLIPS THAT YOU CAN USE WITH MOST ANY CASES YOU LIKE.


NO MORE "WHAT AMMO WHAT MOON CLIP”


ENGINEERED THIS WAY SO CAN USE THE SAME

ONES TO EJECT AND UNLOAD SPENT CASES

FOR ANY BRAND AMMO YOU HAVE ON HAND

OR LIKE IN YOUR CARRY GUN

THESE HAVE BEEN TESTED WITH

THE SMALLEST CASES, MID SIZED CASES, AND LARGEST CASES ON HAND OUT OF 27 HEADSTAMPS.  TOTAL ABOUT 300 CASES TESTED.


MANUFACTURERS TESTED
HORNADY - SPEER - BUFFALO BORE
FEDERAL - REMINGTON - WINCHESTER - FIOCHI
STARLINE - CBC MAGTECH - PPU - WRA - RP
FC - WESTERN - PMC - WW - WCC.


THE CCW HDTM MOON CLIPS

WORK AMAZINGLY WELL

CLIPPED IN THE SMALLEST. NO PROBLEM. MID SIZE. NO PROBLEM. LARGEST. NO PROBLEM.

THEN BACK TO THE SMALLEST. NO PROBLEM.


All LOADED AND UNLOADED WITH MY FINGERS.



CCW HDTM MOON CLIPS MAINTAIN POSITIVE

CASE RETENTION AFTER REPEATED USES

REGARDLESS WHAT SIZE CASES ARE USED


THIS IS DUE TO THE PAIINSTAKING TIME TAKEN IN ENGINERING, MATERAIL SELECTION, AS WELL AS THE ULTIMATE ACCURACY AND CONSITENCY OF THE WIRE EDM THEY ARE CUT ON.

THE COMBINATION OF THESE THINGS

LET ME CREATE YOU A NEW

J FRAME MOON CLIP THAT WILL NOT FAIL


THESE DO NOT COLLAPSE AND HAVE THE PETALS

SPLAY APART IN A BENT POSITION. WHICH DESTROYS THAT MOON CLIP AND MAKES IT USELESS FOR ANY REPEATED USES AS IT WILL NO LONGER PROPERLY RETAIN THE CASES.

TO ENSIRE YOU RECIEVE GENUINE ORIGINAL PRECISION CCW HDTM MOON CLIPS I HAVE ADDED A MAKERS MARK TO MY MOON CLIPS.


THIS IS A WIRED IN SHAPE DONE ON THE EDM.  AS YOU CANNOT LASER HEAT TREATED STAINLESS WITHOUT DAMAGING THE HEAT TREAT CONDITION AND PROPERTIES.

I BEGAN AT THE BASICS OF J FRAME MOON CLIPS AND WENT BACK TO THE VERY FIRST J FRAME MOON CLIP EVER CREATED.  THE 940 9MM MOON CLIP.  940 CLIPS RAN ON PUNCH PRESSES BACK IN THE 90S BY RANCH PRODUCTS WHEN THEY WERE THE SMITH OEM MANUFACTURER.


THEN WITH THAT BASIS I SAT DOWN AND

CREATED THIS HEAVY DUTY BRAND NEW

FULLY FUNCTIONAL CCW HD MOON CLIP

OF MY OWN GEOMETRIES.



CCW HDTM MOON CLIPS 38/357

HEAT TREATED .025 STAINLESS

QTY 3PC - $21




ORIGINAL PRECISION CCW HDTM MOON CLIPS WILL DROP RIGHT OVER A STOCK J FRAME RATCHET.

AS LONG AS YOUR GUN WAS PROPERLY MACHINED FOR MOON CLIPS THE CCW HDTM MOON CLIPS WILL WORK IN YOUR 38/357 J FRAME.


IF YOUR J FRAME ISNT MACHINED IT WILL NEED TO NE MACHINED BY ORIGINAL PRECISION.




CLICK PICTURES FOR CCW HDTM CYLINDER CONVERSIONS













CCW HD MOON CLIP FINGER LOADING AND UNLOADING PROCESS:


NO TOOLS REQUIRED

DONE WITHOUT BENDING THE MOON CLIP


HOLD CCW HD MOON CLIP FLAT IN CENTER

BETWEEN THUMB AND FORE FINGER TIP.

GRASP ROUND AROUND OUTSIDE DIAMETER

BETWEEN OTHER THUMB AND FORE FINGER


PLACE CASE RECESS UNDER RIM AGAINST

CCW HD MOON CLIP OPENING.

APPLY GENTLE PRESSURE WITH THUMB ON

CASE TOWARD CENTER OF MOON CLIP AND

GENTLY ROTATE CASE TOWARD YOU.

CASE WILL SNAP RIGHT IN.


ONCE I GET THE FIRST CASE IN THEN

I CHANGE MY HOLD AND GENTLY

GRASP MOON CLIP BY THE PERIMETER.

I ROTATE THE MOON CLIP TOWARDS ME

TO REPOSITION FOR EACH CASE INSERTED.

I ROTATE THE ROUND TOWARD ME AS

I CLIP EACH FRESH ROUND IN.

THIS WAY YOU HAVE THE NEXT EMPTY

OPENING AWAY FROM YOU AS YOU CLIP

IN EACH ROUND INSERTED.


SOME OF THE LARGER CASES TO GET THE

LAST ROUND IN I WILL GRASP THE ROUND

BY THE BASE AND TIP AS IN THUMB

OVER PRIMER AND BULLET NOSE ON

TIP OF INDEX FINGER.

THEN USE THE SAME GENTLE ROTATION

AND PRESSURE AS WAS DONE WITH THE

PREVIOUS ROUNDS.


TO UNLOAD HOLD MOON CLIP GENTLY

AROUND PERIMETER.

GRASP EMPTY CASE WITH THUMB OVER

PRIMER AND CASE MOUTH ON INDEX FINGER TIP.

HOLD MOON CLIP SO IT DOESNT MOVE.


GENTLY ROTATE CASE COUNTER CLOCKWISE

WHILE APPLYING GENTLE PRESSURE

OUTBOARD TO REMOVE CASE FROM CLIP.


ONCE I GET THE FIRST TWO CASES OUT

I USUALLY JUST GRASP THE MOON CLIP

FLAT BY ITS CENTER AND FINISH REMOVING

THE REST OF THE CASES.


BUT YOU DO NOT HAVE TO CHANGE HOW

YOU HOLD THE MOON CLIP.

SOMETIMES I JUST KEEP AHOLD OF THE

PERIMETER AND FINISH REMOVING THE

EMPTY CASES.



EVERYONES MANUAL DEXTERITY IS DIFFERENT.

YOU MAY FIND THAT FOR LOADING AND

UNLOADING THAT ROTATING IN THE OPPOSITE

DIRECTION THAT I DO WORKS BETTER FOR YOU.

I CAN DO IT EITHER DIRECTION BUT THE

WAY I OUTLINED ABOVE WORKS BEST FOR ME.

USE THE ABOVE AS A BASIS TO FIND WHAT

WORKS BEST FOR YOU.


WHEN I GET TIME I WILL MAKE A VIDEO FOR THIS.


IF YOU HAVE ANY QUESTIONS OR ISSUES

LOADING OR UNLOADING YOUR MOON CLIPS

BY HAND GIVE ME A CALL 480-305-3236

I CAN TALK YOU THRU IT IN A MINUTE OR TWO.




CCW HD MOON CLIP FITMENT NOTE:


DUE TO SLIGHT VARIATIONS

BEYOND MY CONTROL

IN SOME MANUFACTURERS CASES YOU

MIGHT HIT A CERTAIN LOT THAT IS
OVERLY TIGHT OR DOESNT WANT TO CLIP IN.


SAAMI DOES NOT HAVE A SPEC FOR THE
RECESS UNDER THE RIM ON 38/357
SO EACH MANUFACTURER DOES WHATEVER
THEY LIKE IN THAT AREA.

FOR EXAMPLE ONE LOT OF
FEDERAL HAD A THINNER RECESS

UNDER THE RIM. THIS CAUSED THAT

LOT TO BE TOO TIGHT. THEY DID NOT WANT TO

CLIP IN.  BUT OTHER FEDERAL HAD A WIDER

RECESS UNDER THE RIM.  THOSE WORK FINE.

CLIPPED IN NICELY AND CASES HELD NICE

AND STRAIGHT.



THIS INCONSISTENCY IN CASES FROM LOT TO LOT OR MANUFACTURER TO MANUFACTURER

VARIES.  SOME HOLD VERY CONSISTENT

DIMENSIONS ON THEIR CASES SOME DO NOT.


CCI SNAKE SHOT HAS NOT BEEN TESTED
THERE IS NO RECESS UNDER THE CASE
RIM FOR THE CCW HD MOON CLIP TO

CLIP INTO AND HOLD ONTO THE CASE BY.

IF YOU GIVE IT A TRY LET ME KNOW

HOW IT WORKS.  GIVE ME A CALL WHILE

YOU HAVE A FEW MINUETES WITH CCI SNAKE

SHOT AND CCW HD MOON CLIPS IN HAND.

I MAY BE ABLE TO COME UP WITH A SOLUTION.







REVOLVER INTERNAL LOCK REMOVAL PLUG


ORIGINAL PRECISION HOME OF THE

LOCK DELETE

AND

CCW HD MOON CLIP

BRANDS

P.O. BOX 1755

QUEEN CREEK ARIZONA

85142

480-305-3236

PARTS@ ORIGINALPRECISION .COM

REVOLVER PARTS


tm

Honesty, commitment and quality

UPDATED 2022-11-23

1545  MST GMT7



 J FRAME MOON CLIPS 38/357 MOON CLIPS CONCEALED CARRY MOON CLIPS

S&W 640 PRO MOON CLIPS S&W 442 MOON CLIPS S&W MOON CLIPS  MOON CLIPS

S&W 642 PRO MOON CLIPS S&W 340PD MOON CLIPS S&W 940 MOON CLIPS

CYLINDER CUT FOR MOON CLIPS MOON CLIP CONVERSION

442 PRO MOON CLIPS  S&W 638 MOON CLIPS S&W 642 PRO MOON CLIPS
